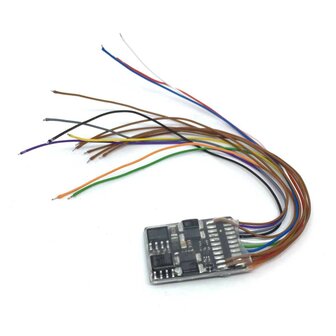

train-O-matic 02010229 lok decoder met 15 draden (W22M)

train-O-matic 02010229 lok decoder met 15 draden (W22M)

20.5 x 15 x 3.2     mm
0.81 x 0.59 x 0.13 inch

10 x AUX (of which 2 SUSI)
SUSI: Soldering pads

Technische eigenschappen van train-o-matic decoders:

- NMRA compliant DCC locomotive decoder
- Short (1-127) and long (128-9999) configurable addresses
- 14, 28/128 speed steps
- Maximum motor current 1000mA
- Load compensation and BEMF
- Speed set at 3 points (Vmin, Vmid, Vmax) or in tabular form
- Shunting speed
- Constant distance braking, activated on ABC/DC sector or at zero speed
- Reduced speed drive on ABC Slow Speed section
- Penduling function (Push-Pull) without or with intermediar stop
- Up to 10 dimmable auxiliary outputs
- Function output maximum 200 mA per output, maximum of all outputs 400mALokommander 2 decoder series
- NMRA compliant DCC locomotive decoder
- Short (1-127) and long (128-9999) configurable addresses
- 14, 28/128 speed steps
- Maximum motor current 1000mA
- Load compensation and BEMF
- Speed set at 3 points (Vmin, Vmid, Vmax) or in tabular form
- Shunting speed
- Constant distance braking, activated on ABC/DC sector or at zero speed
- Reduced speed drive on ABC Slow Speed section
- Penduling function (Push-Pull) without or with intermediar stop
- Up to 10 dimmable auxiliary outputs
- Function output maximum 200 mA per output, maximum of all outputs 400mA
- Output Mapping to functions F0, F1-F12
- Short-circuit and over-current protection of motor and auxiliary outputs
- Bidirectional communication RAILCOM
- SUSI© and LocoWire© interface
- Outputs for Smart Power Pack (SPP ©)
- Electromagnetic uncoupler drive capability
- Upgradable software via the programmer, even with the decoder mounted in the locomotive
- Usable in H0, TT and N scale models
- Supply voltage 4-24V
- Ability to set different speeds for forward and reverse



Warning! This product is not a toy and is not suitable for children under
14 years contains small parts. This product contains electronic parts so
do not throw them in the household waste but hand them in separately.
The EU WEEE directive applies.

Achtung! Dieses Produkt ist kein Spielzeug, nicht für Kinder unter 14
Jahren geeignet, enthält Kleinteile. Dieses Produkt enthält elektronische
Teile. Werfen Sie diese daher nicht in den Müll, sondern getrennt
einsammeln. Es gilt die EU-WEEE-Richtlinie.

Opgelet! Dit product is geen speelgoed, niet geschikt für kinderen
onder de 14 jaar, bevat kleine onderdelen. Dit product bevat
elektronische onderdelen, gooi dit daarom niet bij het huisafval maar
lever dit apart in. WEEE-Regelgeving van de EU is van toepassing.
